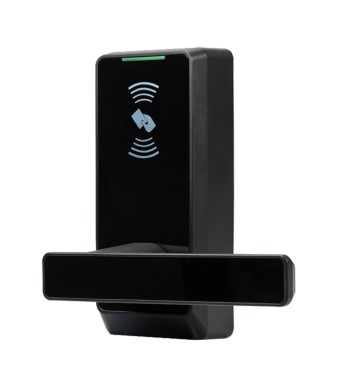

ZKTeco : Card Lock

PL10R

Features
  • Advanced 13.56mhz Mifare card technology
  • Rugged, sleek and compact design
  • American standard single latch for easy replacement and installation
  • Independent clutch motor design under patent protection
  • Idle handle design to prevent forcible entry
  • Registration data are stored even if there is power loss
  • Handle, latch and strike are reversible for all door opening directions
  • Emergency key override (concealed)
  • LED indicator and inbuilt buzzer
  • External terminals to draw back-up power from a 9V battery
  • Low battery warning
  • Normal Open mode
  • Easy to program and easy to use
  • Easy to install – no wiring is required
  • 3 user groups – Admin, Normal User and Temporary User
  • Backset is 60 mm or 70mm (adjustable)

Specifcations
  • Material : Rugged ABS
  • User Capacity : Admin -10 , Normal User – 60 , Temporary User – 20
  • Operating Temperature : -10°C – 55°C
  • Power Supply : 4 x AA Alkaline Battery
  • Backup Unlocking Way : Mechanical Key & 9V Battery
  • Door Thickness : 30-38 mm (optional) , 39-46 mm (standard) , 47-54 mm (standard) , 55-60 mm (optional)
  • Dimensions : Front – 69(W)×155(L)×35(D) mm , Back – 69(W)×155(L)×25(D) mm
